MPEG-TS streams using UDP push

Before configuring your channel for the MPEG-TS streaming, ensure the following codecs are configured:

  • Video – H.264
  • Audio – MP3 or AAC, if audio is configured.

To configure MPEG-TS with UDP push:

  1. Login to the Admin panel as admin. See Connect to the Admin panel.
  1. From the Admin panel, click a Channel; the menu expands.
  2. Click Streaming; the channel's Streaming page opens.

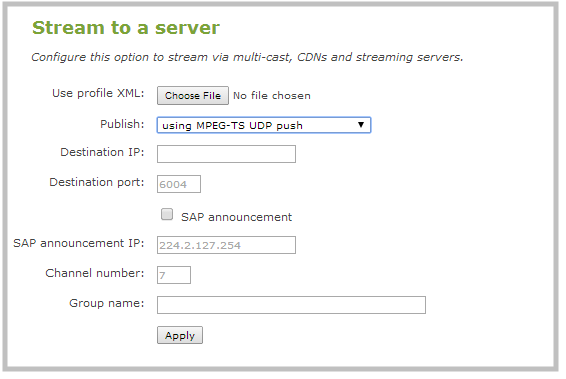

  1. Click the Publish drop-down menu.

  2. Choose using MPEG-TS UDP push.

  1. Enter the destination multicast IP address where the broadcast can be viewed.

A IPv4 multicast address range is an address between to Contact your System Administrator for the specific address to use.

  1. Enter the destination port number through which the media will stream.

  2. Perform one of the following:
    1. If you do not want to advertise your stream to a media player over a local network, go to the last step of this procedure; or
    2. To advertise your stream to a media player over a local network, follow the steps below.
  3. Enable the SAP announcement checkbox to advertise your stream over a local network. When the checkbox is enabled and a multicast IP address is configured, your stream is displayed in the playlist of local media players.
  4. Enter a multicast IP address in the SAP announcement IP field. If your media player is configured to receive multicast streams from an IP address that is different from the default address, you may need to contact your system administrator for a specific multicast IP address.
  5. Enter a channel number in the Channel number field to identify your stream in the media player. By default the Channel number is the channel identifier.

When a channel number value is not specified, viewers cannot select a channel from the set-top box or Smart TV .

  1. Enter a name for a group of streams in the text box next to Group name. Since media players simply present a list of available streams, you can organize your streams into multiple folders or in cases where folders are not displayed, use dot separator hierarchy to help your viewers filter out unwanted streams by category.
  2. Click Apply. To view the stream, open the URL in a media player, for example:


    For example: udp://@

    To view the stream when SAP announce has been set and the stream is advertised from a media player, set-top-box or Smart TV, refer to Viewing with Session Announcement Protocol (SAP).
