Verify IP address and MAC address

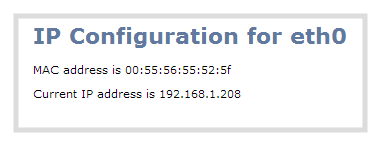

The Admin panel shows you the system’s MAC address and current IP Address via the Network configuration page.

To view settings on network configuration page:

  1. Login to the Admin panel as admin. See Connect to the Admin panel.
  1. Select the Network link in the Configuration menu; the network configuration page opens.
  2. Note the MAC address and Current IP address listed at the top of the page.

Network Information Fields

LabelDescription/Options
MAC AddressA media access control address (MAC address) is a unique identifier for the network interface. The value is read-only and cannot be changed. You may need to share this value with your system administrator.
Current IP AddressReflects the current internet protocol address (IP address) of the system. This value is either obtained from the DHCP server (if using DHCP) or is the configured static IP address. The Standalone VGA Grid supports IPv4 addresses. It does not support IPv6 addresses.
