Power down and system restart

This section covers the following topics:

• Restarting the device via the Admin panel
• Shutting down the device via the Admin panel
• Shutting down the device manually

Restarting the device via the Admin panel

Standalone VGA Grid's Admin panel allows you to reboot the system.

To restart the system:

1. Login to the Admin panel as admin. See Connect to the Admin panel.

2. Select the Maintenance link in the Configuration menu; the maintenance page opens.

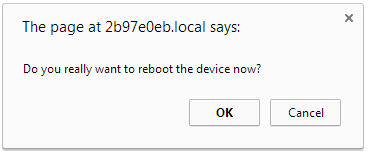

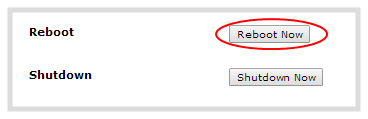

3. Click the Reboot Now button; a confirmation dialog appears.

4. Click OK.

Shutting down the device via the Admin panel

The Standalone VGA Grid Admin panel allows you to shut down the system.

To shut down the system:

1. Login to the Admin panel as admin. See Connect to the Admin panel.

2. Select the Maintenance link in the Configuration menu; the maintenance page opens.

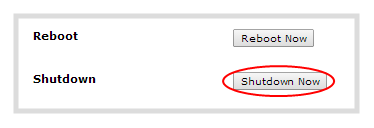

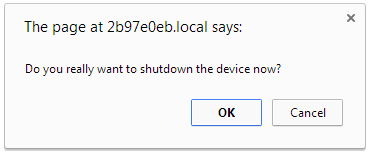

3. Click the Shutdown Now button; a confirmation dialog appears.

4. Click OK.

Shutting down the device manually

You can manually shut down the Standalone VGA Grid via the button physically located on the system.

To shut down the system manually:

1. Unlock the front panel.
2. Press and release the power button the system power button to initiate a safe power down; the system shuts down.

If the system is unresponsive, press and hold the power button for 4 seconds to force an immediate power down.
