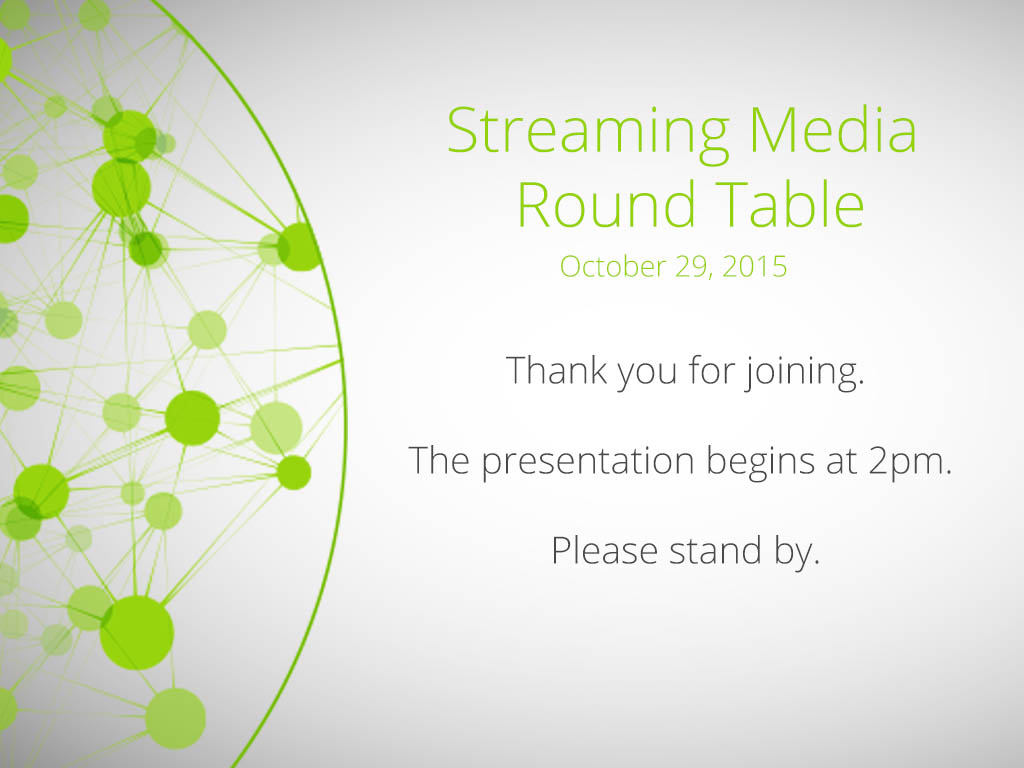

By default the system displays a No Signal image when there is no video signal coming in to a source. You can customize this image to display a different message to your viewers. For example if a viewer logs in early, or if you are experiencing delays you could indicate the start time (or expected resolution time) using the no signal image.
Before you can specify a custom no signal image for a source, you must upload it following the procedure To upload an image.
Transparent PNGs are not a supported file type for "No Signal" images.
To set the no signal image for a source:
- Login to the Admin panel as admin. See Connect to the Admin panel.
- Follow the instructions above (To upload a logo to a channel) to upload an image via the Branding Content page.
- From the Admin panel, select your desired source under the Source header; the source configuration page opens.
- Select a “No signal” image. This image displays in the channel when the source's signal is not detected. (If your uploaded image does not appear in the list, ensure it doesn't exceed the maximum file size of either 1080p or 2160p4K .)
Alternatively, to select an image you can simply drag and drop your chosen picture file to the blank space below the Image field.
- In the Timeout field, enter the number of seconds before the "No signal" image is displayed. If no manual value is entered, the default time to display is 5 seconds.
- Click Apply.
- Test that the No Signal image is correctly applied by disconnecting your source and previewing the channel(s) containing said source. See Preview a channel for more information.
