View list of recorded files

Recordings for Standalone VGA Grid are stored for each channel and each recorder separately. To view all the recordings stored, follow the procedures below for all channels and all recorders you have configured.

To view the recordings for a channels or recorders:

1. Login to the Admin panel as admin or operator. See Connect to the Admin panel.

2. To view files recorded for a channel:
   1. Select a channel from the Channels section; the channel menu expands.
   2. Select the Recording link for your channel; the Recording page appears.
3. To view files recoded for a recorder:
   1. Select the recorder from the Recorders section; the recorder page appears.
4. If there are no files:

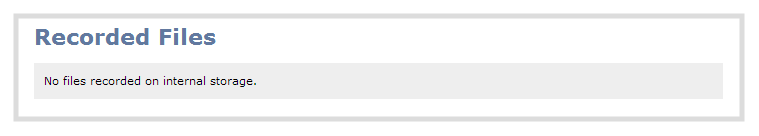

   1. A message indicates there are no recorded files (for this channel).



5. Otherwise:

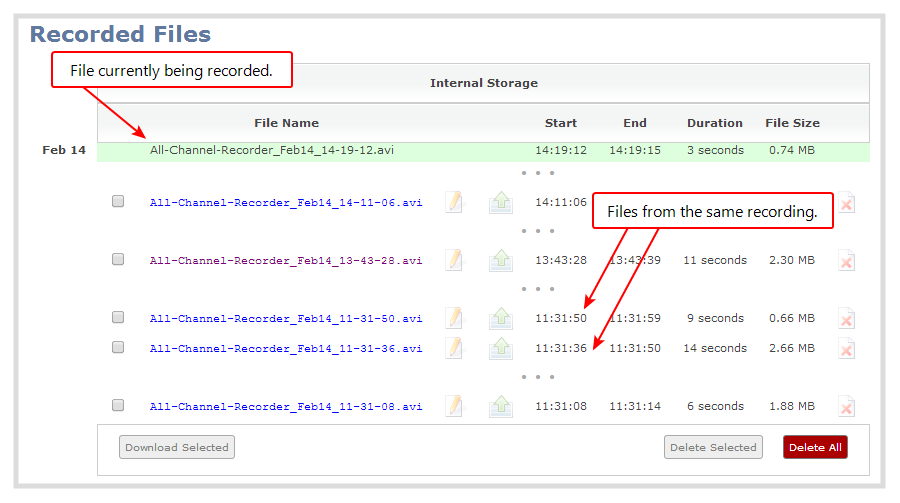

   1. All files for this channel are listed, sorted by date.

   Files that are part of the same recording session are listed one after another. Three dots appear between files of different recording sessions. The file currently being recorded (if applicable) is shown at the top of the list. It cannot be modified or downloaded until it has finished recording.

   2. You may also manage the list of recordings in Epiphan Live, using the Your Recordings section.
