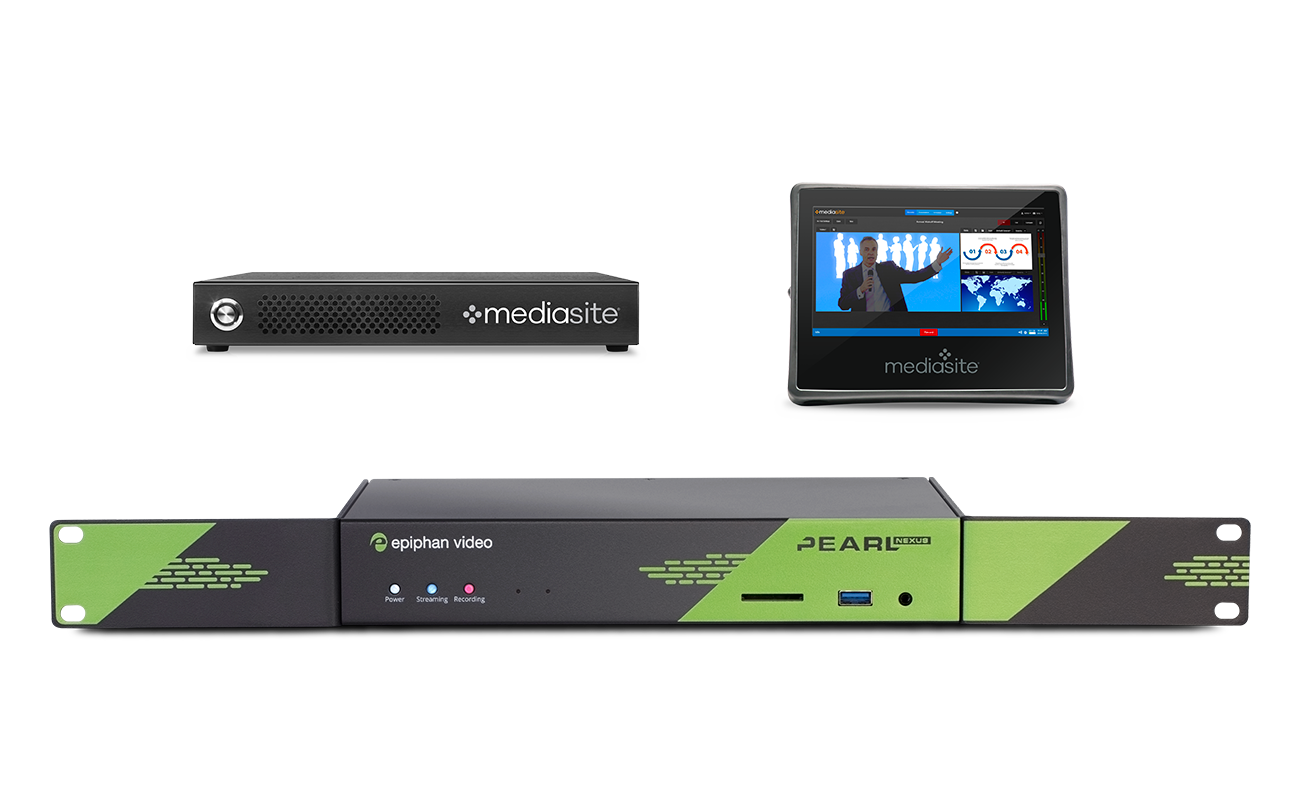

Trying to decide between the Mediasite Recorder or Mobile recorder and the Epiphan Pearl Nexus? Researching Mediasite Recorder alternatives? You’ve come to the right place.
M1041 Mobile Recorder | R1020 Recorder |
||
---|---|---|---|
Front screen | – | 15.5″ touchscreen (LED backlit LCD with chemically strengthened glass, 1920×1080) | – |
Video inputs | 2 × HDMI 1 × 3G-SDI 2 × USB 2 × RTSP/SRT/NDI-HX | 1 × 3G-SDI 1 × HDMI / VGA / Component 1 × S-Video / Composite USB 3.0 2x NDI | 2 × HDMI USB 3.0 2 × NDI |
Video outputs | 1 × HDMI program | 1× HDMI program 1× DisplayPort program | 1 × HDMI program 1 × DisplayPort program |
Encoding | Up to 3 × 1080p 30fps H.264 | 3 × 1080p | 2 × 1080p |
Audio inputs | 2 × XLR (with 48 V phantom power) 2 × 1/4″ TRS 2 × RCA 1 × 3.5 mm 2 × USB 2 × HDMI embedded audio 1 × 3G-SDI embedded audio Network-embedded audio inputs (RTSP, SRT, NDI-HX) | XLR RCA 1 × 3.5mm | XLR RCA 1 × 3.5mm |
Audio output ports | 1 × 3.5 mm | 1 × stereo 3.5 mm 1 × RCA | 1 × stereo 3.5 mm |
Storage | 1 TB internal SSD SATA storage | Internal SSD | 120 GB Internal SSD |
Rackmount option | 1RU (Rackmount Unit) with detachable mount wings | – | Rack-mountable to 1U 19″ rack |
CMS integrations | Kaltura Panopto Yuja Opencast | Mediasite | Mediasite |
Scheduling | Through CMS integration and via Epiphan Edge | Through Mediasite (Supports R25/Schedule25, EMS™, Astra Schedule and Syllabus Plus) | Through Mediasite (Supports R25/Schedule25, EMS™, Astra Schedule and Syllabus Plus) |
Security features | LDAP support, 802.1x network access control, role-based access control (user/admin/operator), HTTPS/SSL | Kensington Security Slot | Kensington Security Slot |
Dimensions | 19 × 7.5 × 1.75″ (46.5 × 18.4 × 4.3 cm) | 12.7 × 16.1 × 2.35” (32.2 × 40.9 × 6 cm) | 1.75 × 13.75 × 9″ (4.4 × 34.9 × 22.9 cm) |
Weight | 5.3 lb / 2.4 kg | 11.5 lbs / 5.2 kg | 5 lbs |
The info in this table is current as of Febuary 13, 2024. All info related to the Mediasite M1041 Mobile Recorder and Mediasite R1020 Recorder was sourced from the Mediasite Recorder product page, Recorder user guides, and the specifications sheets.
Meet your school’s video production needs with a lineup of flexible and scalable hardware for video capture, streaming, and recording – all centrally managed. Perfect for lecture capture, online learning programs, and more.
