View 802.1x network connection status

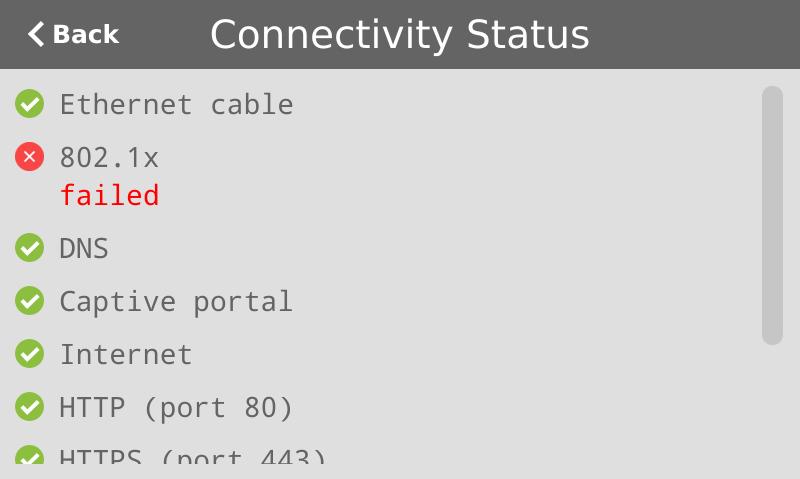

You can see the 802.1x network connection status when you run the Connectivity status diagnostic using the Admin panel and from the touch screen Settings when you select Network > Connectivity Status. The status can display as either passed, failed, or disabled.

.

If you attempt to connect to a network that isn't 802.1x enabled when 802.1x is configured on Pearl-2, a consistent 802.1x status: failed status message appears on the Network Configuration page in the Admin panel.

For more information about the Connectivity status diagnostics, see Diagnostic tools.
