Connect the network and power on

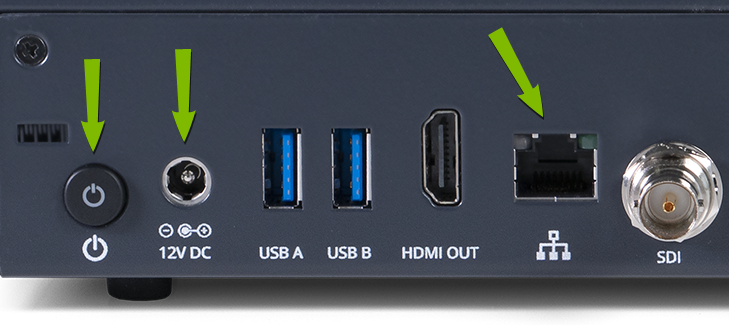

If your network uses DHCP, then all you need to do is connect the LiveScrypt device to your network using a standard RJ-45 Ethernet cable. An IP address is automatically assigned to the device.

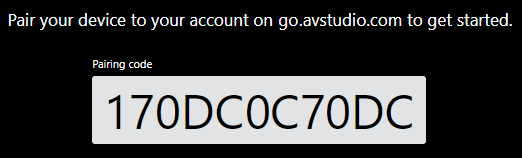

Now you can connect the AC power adapter and power on. The LiveScrypt device should automatically connect to the network. You will see a device pairing code on the touch screen.

Your network must have access to the Internet for LiveScrypt transcription to work, plus the required network ports must be open with read/write privileges. Contact your IT administrator if you're not sure.

The following network ports must be open with read/write privileges for LiveScrypt to function properly:

• Port 22 - SSH used for remote support (TCP).

• Port 80 - used by the local web admin page (HTTP).
• Port 123 - used for NTP time synchronization (TCP/UDP).
• Port 443 - used to communicate with the LiveScrypt cloud transcription service (HTTPS).

For more information about network settings or assigning a static IP address, see System network options.
