Set the audio mode

The AV.io+ Config tool gives users the ability to specify a specific mode for audio output. For settings to persist after power cycling, please allow 5 seconds before disconnecting or restarting device.

To set the audio mode with the AV.io+ Config tool:

  1. If needed, install the AV.io+ Config tool. For details specific to your OS, see Install the AV.io+ Config tool.
  2. Connect your AV.io SDI+ device to your computer, laptop, or notebook.

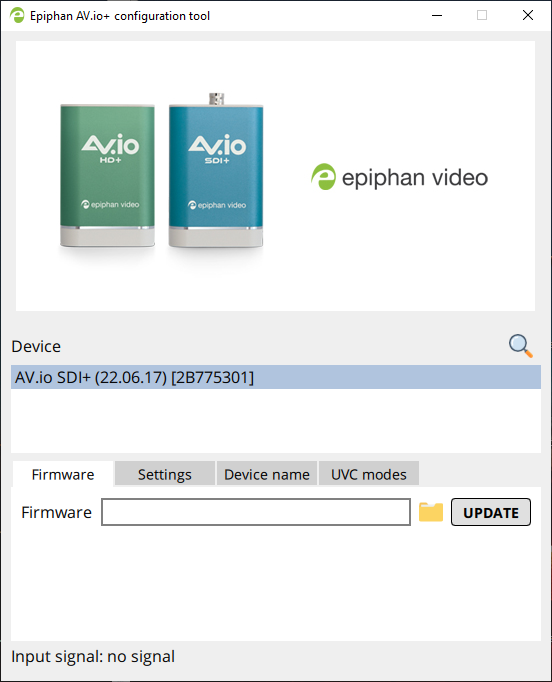

  3. Open the AV.io+ Config tool.

  1. Select your AV.io SDI+ device from the list under the Devices heading.

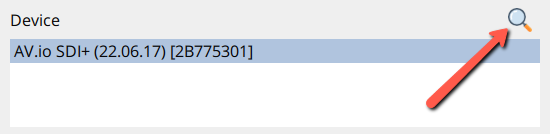

If your video grabber is not displayed, press the Refresh icon to refresh the list of connected devices.

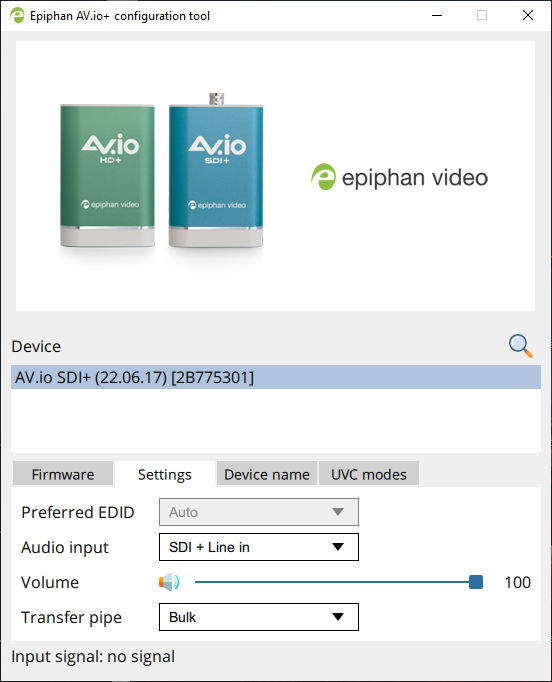

  1. Click the Settings tab; the Settings page appears.

  1. To change the Audio input, click on the drop down menu and select from SDI, Mic In, Line In, SDI + Line In, or SDI + Mic In.

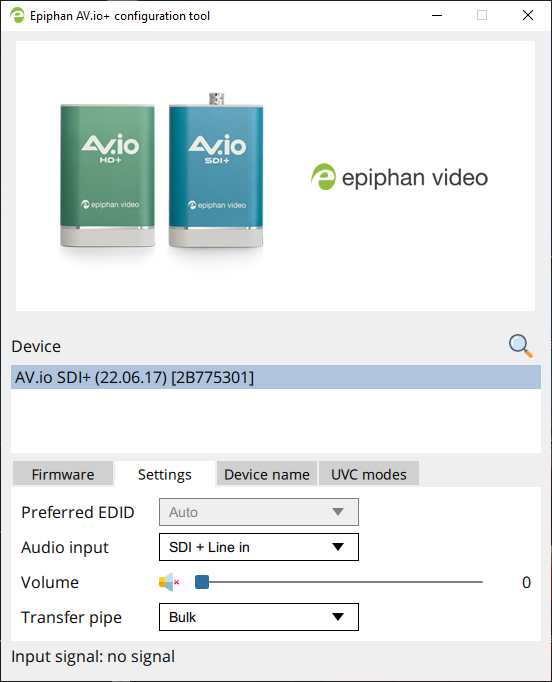

  2. You can also adjust the volume of the input by moving the Volume slider to the left or right. Moving it all the way to the left will mute the audio source.
